Overview

If/Else is single path branching operator. You can create multiple execution branches, but Pipedream will execute the first branch that matches the configured rules. The order in which rules are defined will affect the path of execution. If/Else operator is useful when you need to branch based on the value of multiple input variables. You must define both the input variable and condition to evaluate for every rule. If you only need to test for the value of a single input variable (e.g., if you are branching based on the path of an inbound request), the Switch operator may be a better choice.

​
Capabilities

  • Define rules to conditionally execute one of many branches
  • Evaluate one or more expressions for each condition (use boolean operators to combine muliple rules)
  • Use the Else condition as a fallback
  • Merge and continue execution in the parent flow after the branching operation
If you disable the Else branch and there are no matching cases, the workflow will continue execution in the parent workflow after the end phase of the If/Else block
The If/Else operator is a control flow Block with start and end phases. Learn more about Blocks.

​

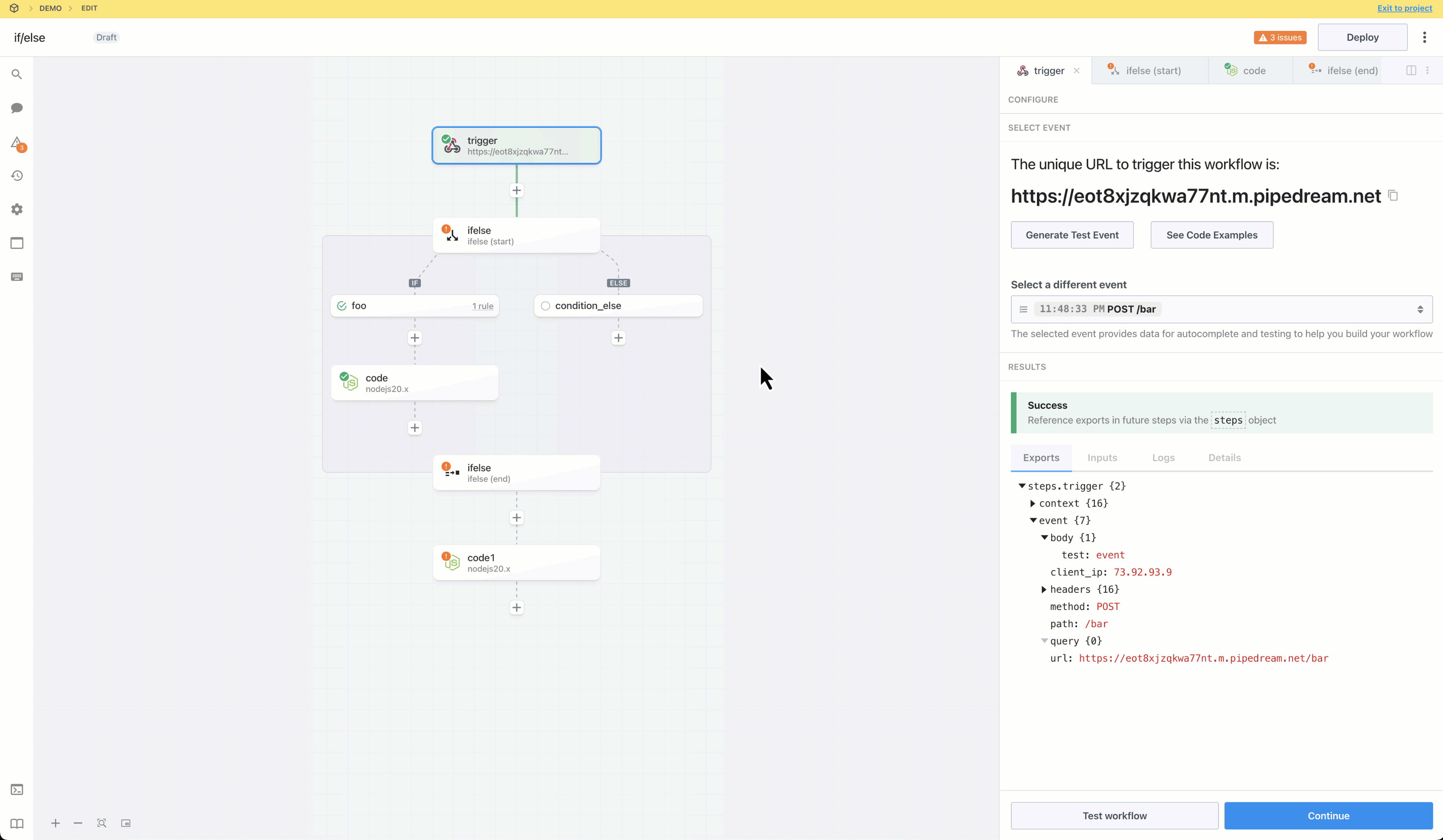

Demo

​
Getting Started

1

Generate a test event

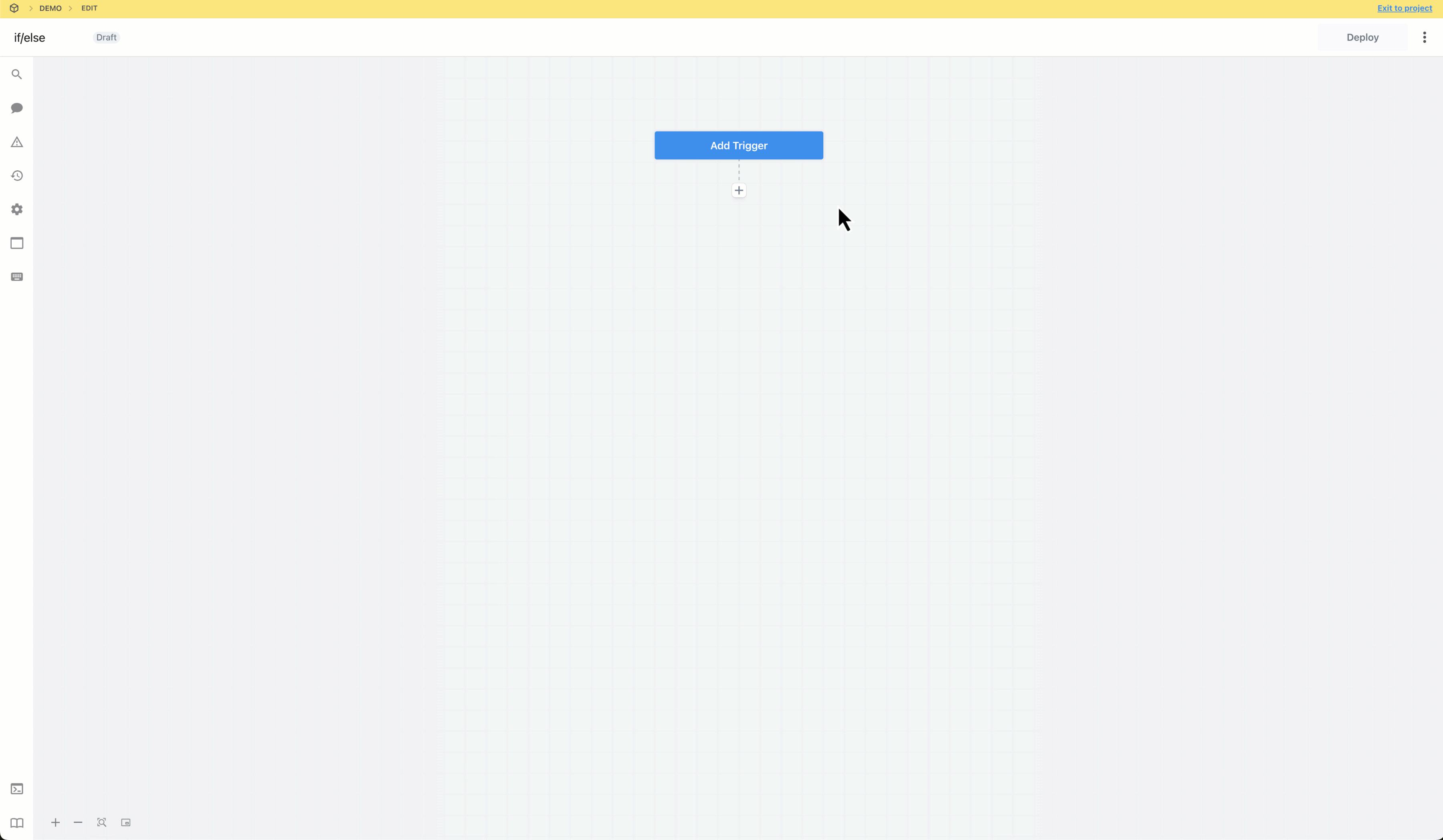

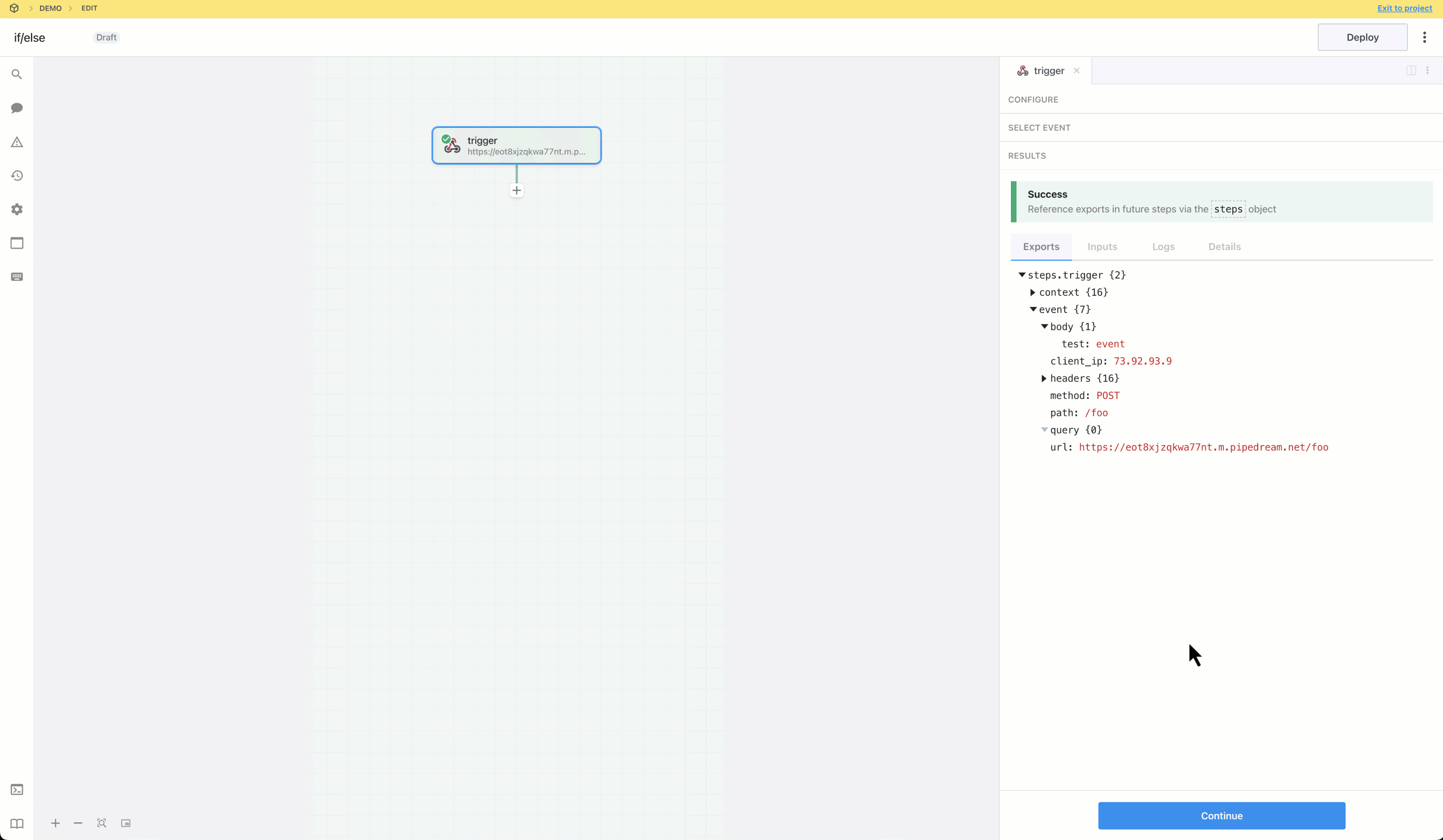

Add a trigger and generate an event to help you build and test your workflow:
2

Add the If/Else control flow block

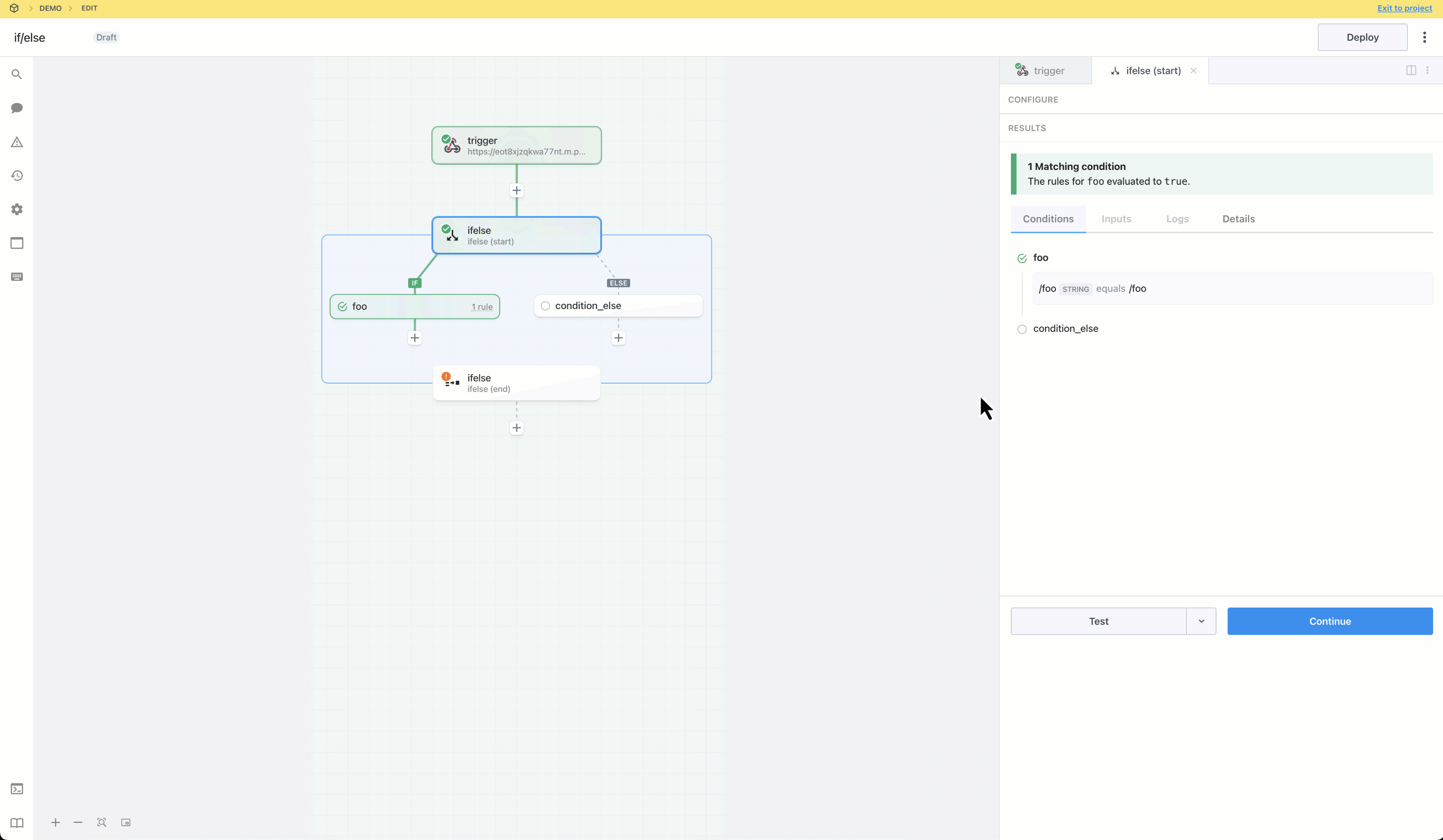

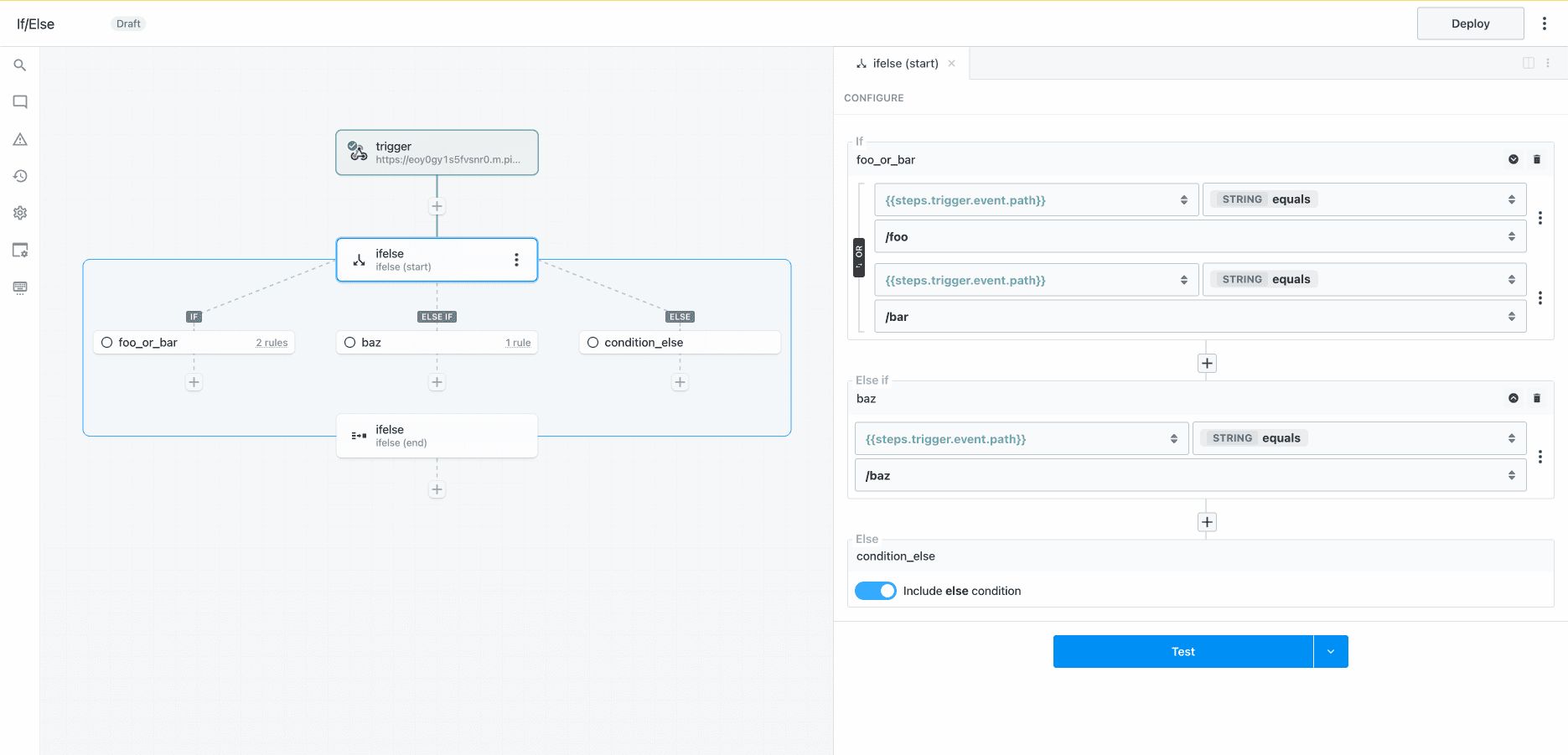

Click the + button to add a step to the canvas and select If/Else from the Control Flow section on the right. In the “start” phase, configure rules for each branch (optionally toggle the else branch) and then test the step.
IMPORTANT: If you disable the Else condition and an event does not match any of the rules, the workflow will continue to the next step after the If/Else section. If you want to end workflow execution if no other conditions evaluate to true, enable the Else condition and add a Terminate Workflow action.
3

Build and test along the execution path

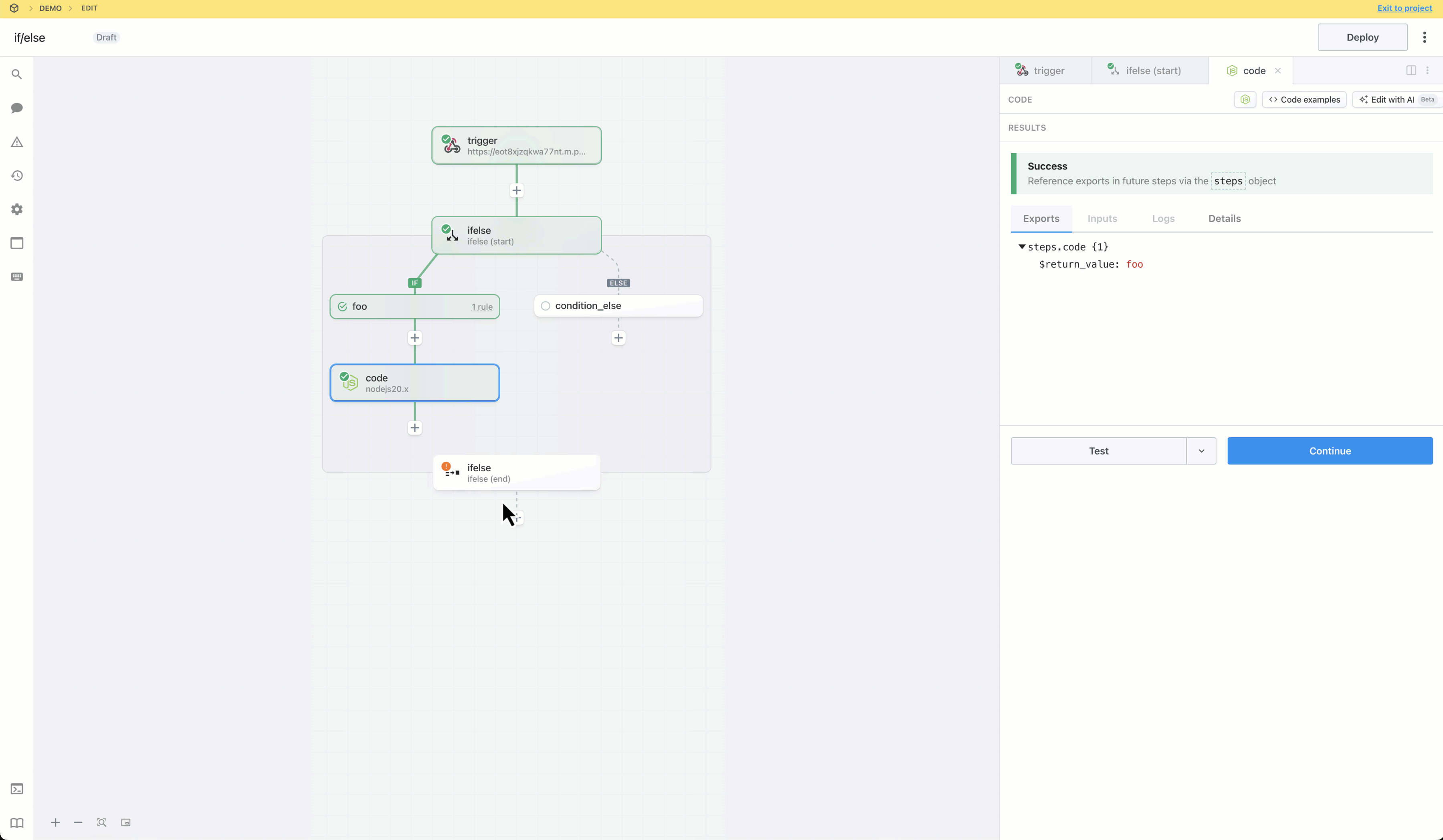

Add a step to the success branch and test it
4

Merge and continue the parent flow after the branching operation

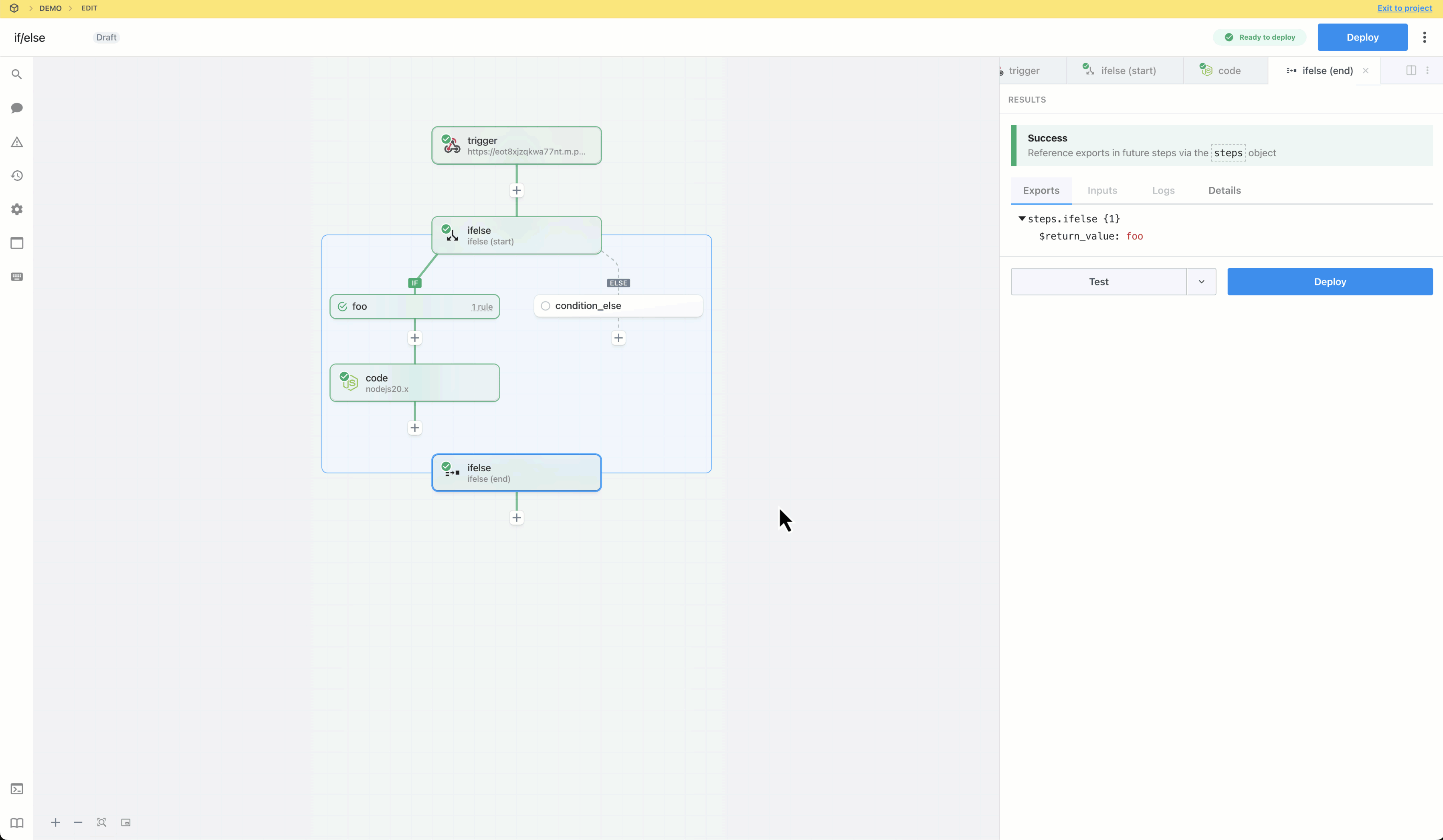

Test the end phase to export results from the If/Else control flow block.

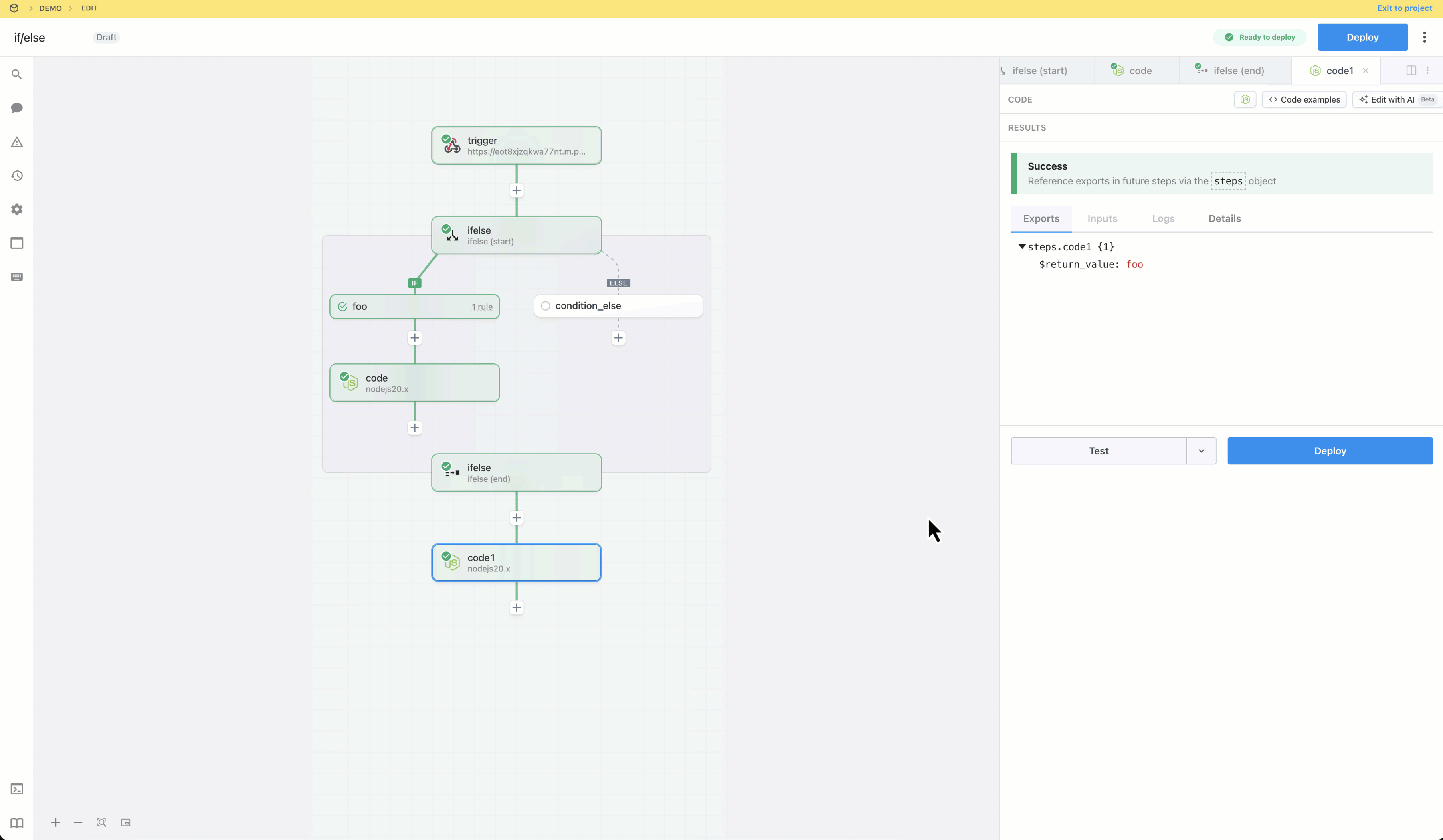

Add a step and reference the exports from ifelse using the steps object.
5

Build and test alternate paths

Generate or select an alternate event to generate data to help you test other branches as you build. When you select a new event, the steps in the root workflow segments go stale. Steps in control flow blocks will only go stale if they are in the known path of execution; i.e., if you test a start phase, the steps in the success path will become stale.
Build, test and deploy the workflow.
6

Test the deployed workflow

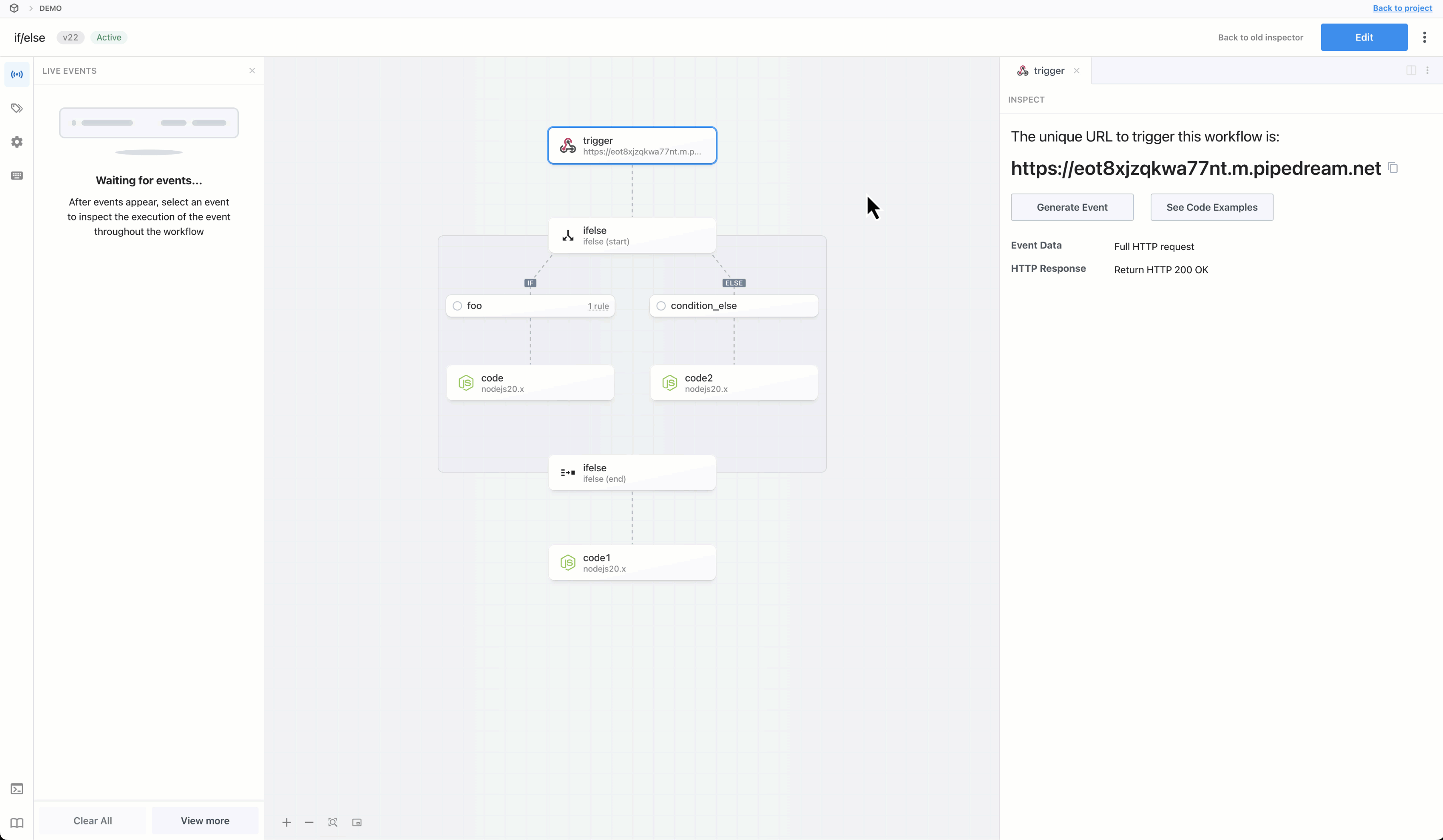

Generate test events to trigger the deployed workflow and inspect the executions.
