Managed Auth Quickstart

Pipedream Connect is the easiest way for your users to connect to over 2,500+ APIs, right in your product. You can build in-app messaging, CRM syncs, AI agents, and much more, all in a few minutes.

Visual overview

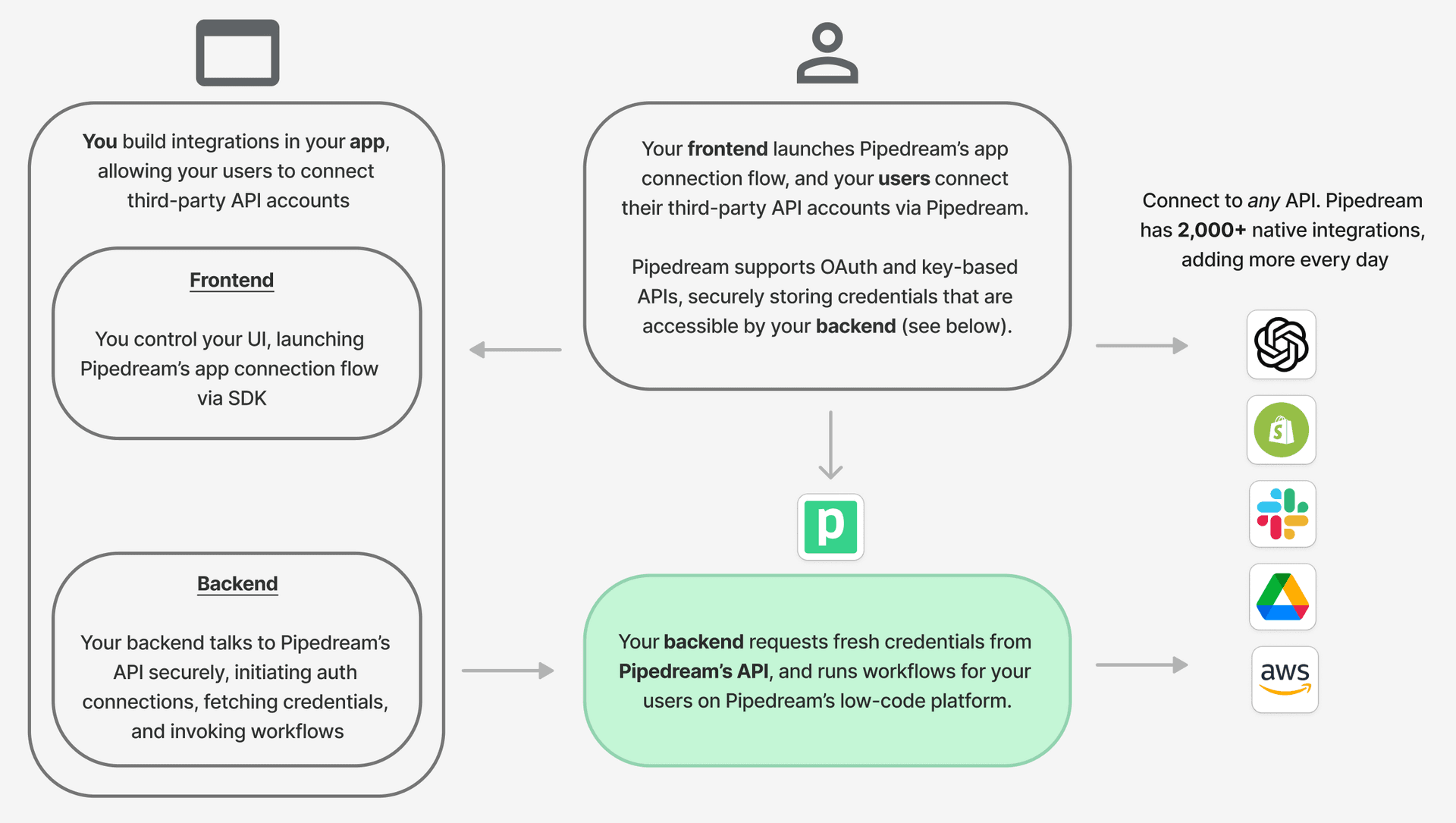

Here’s a high-level overview of how Connect works with your app:


Pipedream Connect overview

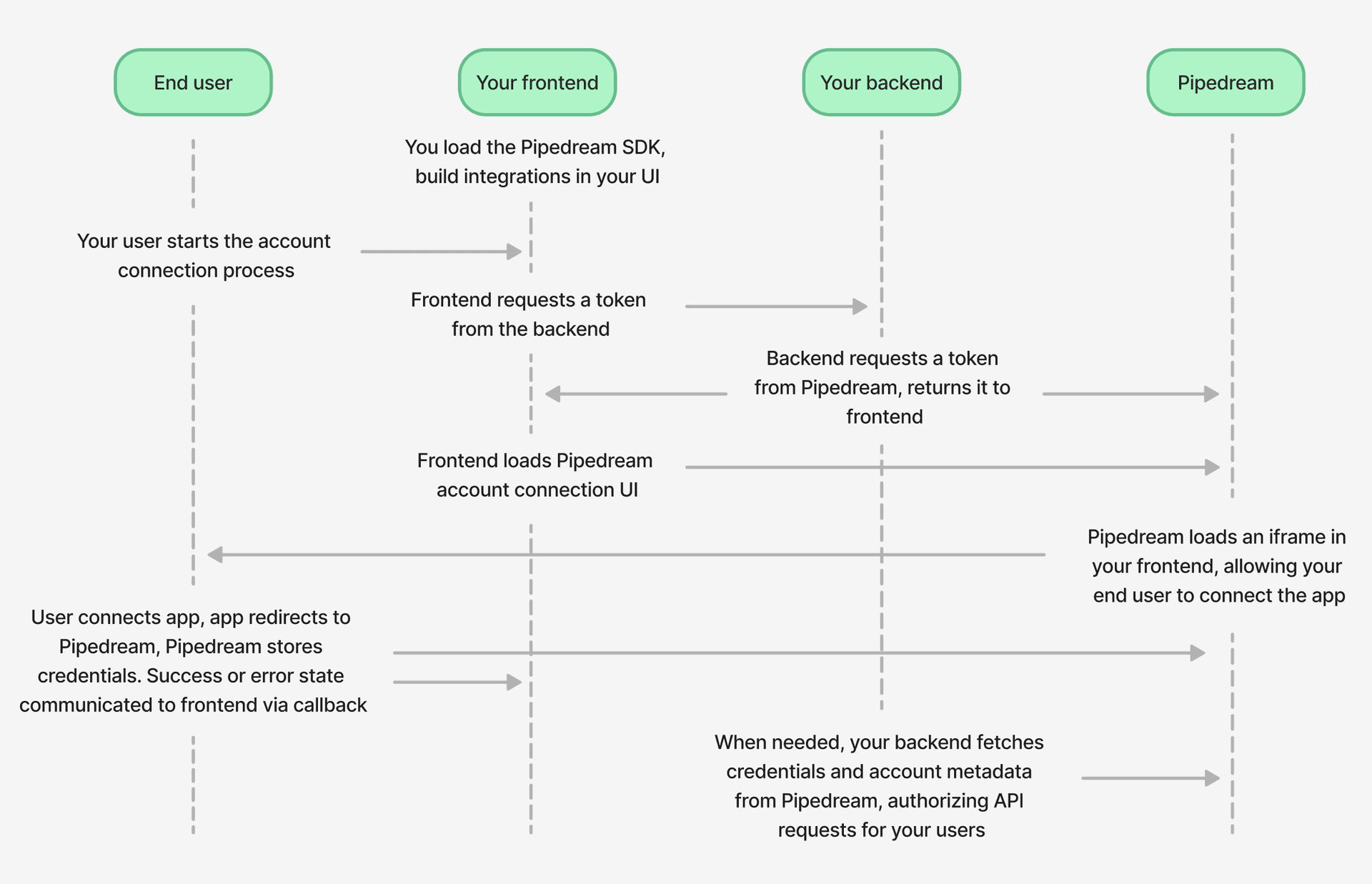

Here’s how Connect sits in your frontend and backend, and communicates with Pipedream’s API:


Connect developer flow

Getting started

We’ll walk through these steps below with an interactive demo that lets you see an execute the code directly in the docs.

Configure your environment

You’ll need to do two things to add Pipedream Connect to your app:

  1. Connect to the Pipedream API from your server. This lets you make secure calls to the Pipedream API to initiate the account connection flow and retrieve account credentials.
  2. Add the Pipedream SDK to your frontend or redirect your users to a Pipedream-hosted URL to start the account connection flow.

If you’re building your own app, you’ll need to provide these credentials to the environment, or retrieve them from your secrets store:

# Used to authorize requests to the Pipedream API
PIPEDREAM_CLIENT_ID=your_client_id
PIPEDREAM_CLIENT_SECRET=your_client_secret
PIPEDREAM_ENVIRONMENT=development
PIPEDREAM_PROJECT_ID=your_project_id

Create a project in Pipedream

  1. Open an existing Pipedream project or create a new one at pipedream.com/projects
  2. Click the Settings tab, then copy your Project ID

Create a Pipedream OAuth client

Pipedream uses OAuth to authorize requests to the REST API. To create an OAuth client:

  1. Visit the API settings for your workspace
  2. Create a new OAuth client and note the client ID and secret

You’ll need these when configuring the SDK and making API requests.

Generate a short-lived token

To securely initiate account connections for your users, you’ll need to generate a short-lived token for your users and use that in the account connection flow. See the docs on Connect tokens for a general overview of why we need to create tokens and scope them to end users.

Check out the code below try it yourself:

Generate a Connect Token from your server
External User ID:
import { createBackendClient } from "@pipedream/sdk/server"; // This code runs on your server const pd = createBackendClient({ environment: "production", credentials: { clientId: process.env.PIPEDREAM_CLIENT_ID, clientSecret: process.env.PIPEDREAM_CLIENT_SECRET, }, projectId: process.env.PIPEDREAM_PROJECT_ID }); // Create a token for a specific user const { token, expires_at, connect_link_url } = await pd.createConnectToken({ external_user_id: "YOUR_USER_ID", });

Once you have a token, return it to your frontend to start the account connection flow for the user, or redirect them to a Pipedream-hosted URL with Connect Link.

Refer to the API docs for full set of parameters you can pass in the ConnectTokenCreate call.

Connect your user’s account

You have two options when connecting an account for your user:

  1. Use the Pipedream SDK in your frontend
  2. Use Connect Link to deliver a hosted URL to your user

Use the Pipedream SDK in your frontend

Use this method when you want to handle the account connection flow yourself, in your app. For example, you might want to show a Connect Slack button in your app that triggers the account connection flow.

First, install the Pipedream SDK in your frontend:

npm i --save @pipedream/sdk

When the user connects an account in your product, pass the token from your backend and call connectAccount. This opens a Pipedream iFrame that guides the user through the account connection.

Try the interactive demo below to connect an account after generating a token in the previous step:

Connect an account from your frontend
import { createFrontendClient } from "@pipedream/sdk/browser" // This code runs in the frontend using the token from your server export default function Home() { function connectAccount() { const pd = createFrontendClient() pd.connectAccount({ app: "google_sheets", token: "{connect_token}", onSuccess: (account) => { // Handle successful connection console.log(`Account successfully connected: ${account.id}`) }, onError: (err) => { // Handle connection error console.error(`Connection error: ${err.message}`) } }) } return ( <main> <button onClick={connectAccount}>Connect Account</button> </main> ) }

Generate a token above in order to test the account connection flow

Use this option when you can’t execute JavaScript or open an iFrame in your environment (e.g. mobile apps) and instead want to share a URL with your end users.

The Connect Link URL opens a Pipedream-hosted page, guiding users through the account connection process. The URL is specific to the user and expires after 4 hours.

After generating a token in the step above, you can use the resulting Connect Link URL. Try it below:

Generate a token above to see a Connect Link URL here

Make sure to add the app parameter to the end of the URL to specify the app.

Check out the full API docs for all parameters you can pass when creating tokens, including setting redirect URLs for success or error cases.

Make authenticated requests

Now that your users have connected an account, you can use their auth in one of a few ways:

  1. Expose 10k+ tools to your AI app or agent and call them on behalf of your customers
  2. Send custom requests to any one of the 2500+ APIs using the Connect API proxy
  3. Use Pipedream’s visual workflow builder to define complex logic to run on behalf of your users
  4. Embed Pipedream components directly in your app to run actions and triggers on their behalf

Deploy your app to production
